Three Phase Inverter PCB Design using KiCAD
Three Phase Inverter PCB Design using KiCAD - Image 2
Three Phase Inverter PCB Design using KiCAD - Image 3

Three Phase Inverter PCB Design using KiCAD

Original price was: ₹2,000.Current price is: ₹999.

This is a Three-Phase Inverter design rated for 20A, 50V, created using KiCad.Suitable for driving BLDC or PMSM motors in various control applications.Includes complete KiCad project files – schematic, PCB layout, and Gerbers.Ideal for engineers, students, and researchers in motor control and power electronics.Downloadable digital product – no physical item shipped.

Explanation

Need one to one meeting with the developer for explanation

Product price: ₹999
Order total:
SKU: 059
Category:

Description

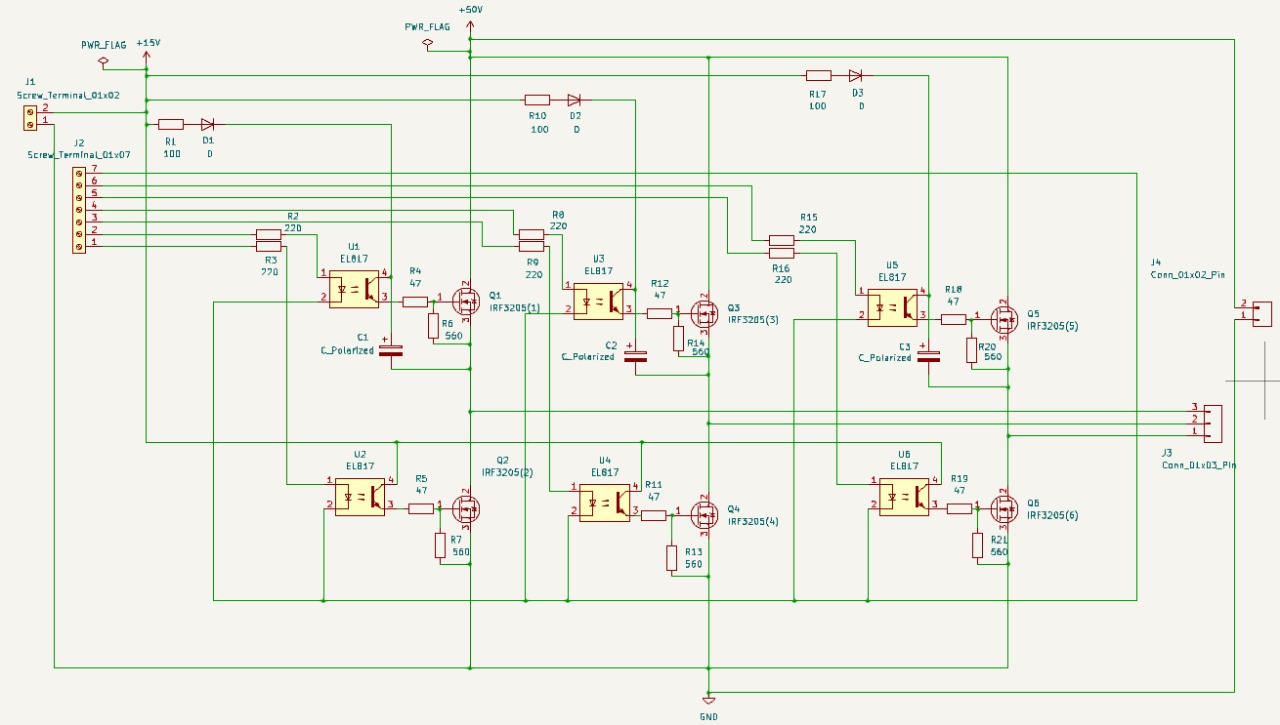

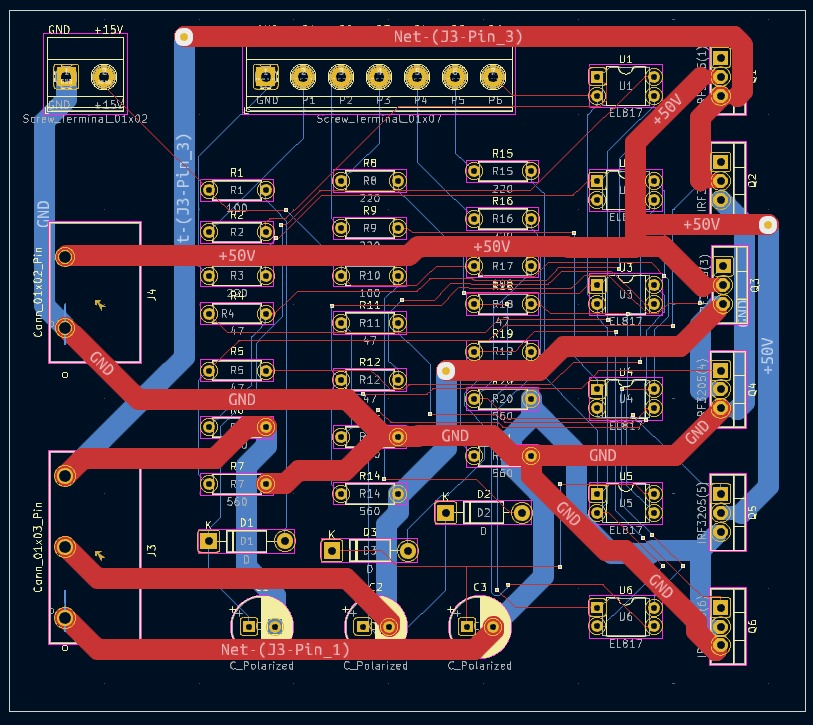

This is a Three-Phase Inverter design rated for 20A, 50V, created using KiCad.
Suitable for driving BLDC or PMSM motors in various control applications.
Includes complete KiCad project files – schematic, PCB layout, and Gerbers.
Ideal for engineers, students, and researchers in motor control and power electronics.
Downloadable digital product – no physical item shipped.

For customization feel free to Contact:

email: support@simulationkart.com

WhatsApp: +91 72002 37131
